Nylon cable tie self-locking
◆ Material：Nylon 66, 94V-2 certificated by UL. Acid & erosio ncontrol, insulate well and not easy to aging、tensile strong.
◆ Application temperature：-40℃ to 85℃.
◆ Installation temperature：-35℃ to 85℃.

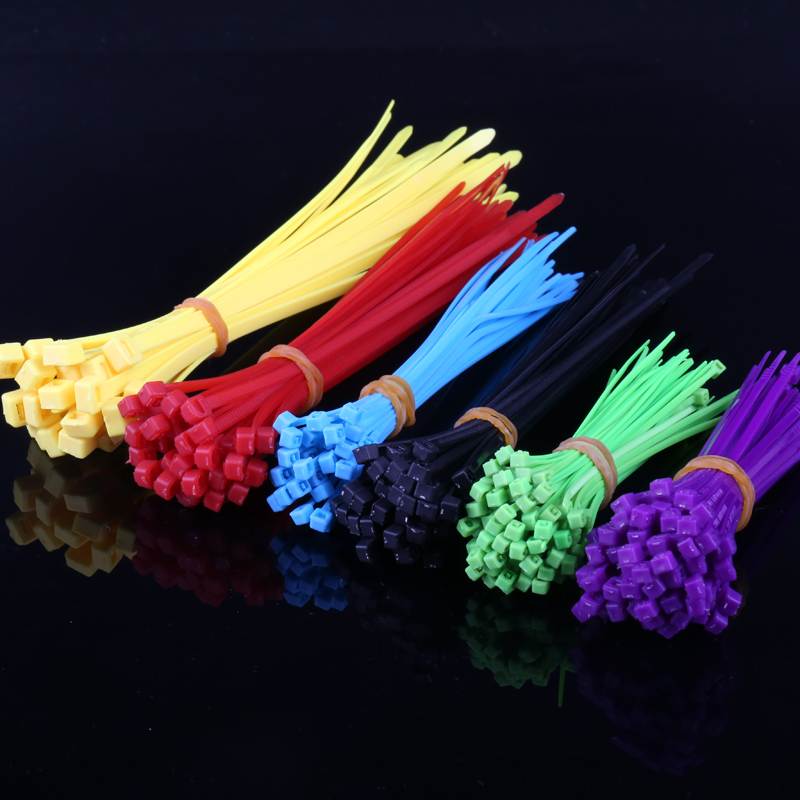

◆ Color: Natural,Black,UV black and other colors are available as requested.
Natural cable ties preferred for indoor applications, while UV black is recommended for outdoor use.

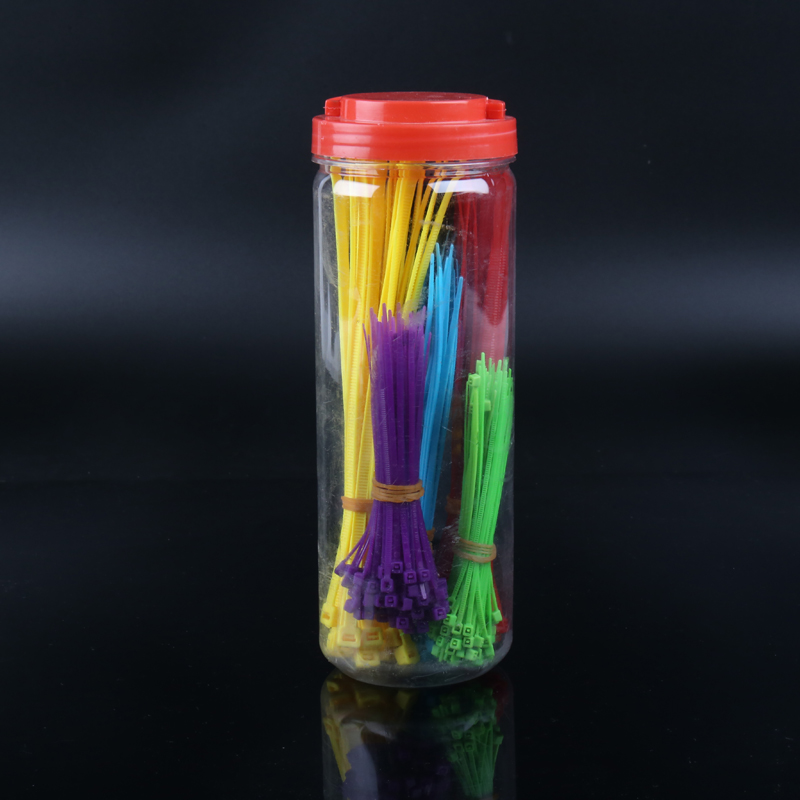

Packing:100pcs/bag,500pcs/bag,1000pcs/bag.Customizable packaging with logo.

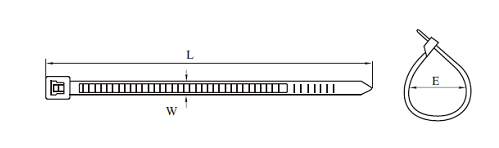

| ITEM NO. | Length | Width | Bundle dia | Tensile strength | ||
| inch | mm | mm | mm | LBS | KGS | |
| JH-3×100 | 4 | 100 | 2.5 | 2-22 | 18 | 8 |
| JH-3×120 | 4.8 | 120 | 2.5 | 2-28 | ||
| JH-3×150 | 6 | 150 | 2.5 | 2-35 | ||
| JH-3×200 | 8 | 200 | 2.5 | 2-50 | ||
| JH-3×250 | 10 | 250 | 2.7 | 2-65 | ||
| JH-4×150 | 6 | 150 | 3.6 | 3-35 | 40 | 18 |
| JH-4×200 | 8 | 200 | 3.6 | 3-50 | ||
| JH-4×250 | 10 | 250 | 3.6 | 3-65 | ||
| JH-4×300 | 12 | 300 | 3.6 | 3-80 | ||
| JH-4×350 | 14 | 350 | 3.6 | 3-95 | ||
| JH-4×370 | 14.6 | 370 | 3.6 | 3-105 | ||
| JH-4×400 | 16 | 400 | 3.6 | 3-115 | ||
| JH-5×150 | 6 | 150 | 4.6 | 3-35 | 50 | 22 |
| JH-5×200 | 8 | 200 | 4.6 | 3-50 | ||
| JH-5×250 | 10 | 250 | 4.6 | 3-65 | ||
| JH-5×300 | 12 | 300 | 4.8 | 3-80 | ||
| JH-5×350 | 14 | 350 | 4.8 | 3-95 | ||
| JH-5×380 | 14.6 | 380 | 4.8 | 3-105 | ||
| JH-5×400 | 16 | 400 | 4.8 | 3-115 | ||
| JH-5×450 | 18 | 450 | 4.8 | 3-130 | ||
| JH-5×500 | 20 | 500 | 4.8 | 3-150 | ||
| JH-6×270 | 10.8 | 270 | 6 | 3-75 | 68 | 30 |
| JH-8×200 | 8 | 200 | 7.6 | 4-50 | 120 | 55 |
| JH-8×250 | 10 | 250 | 7.6 | 4-65 | ||
| JH-8×300 | 12 | 300 | 7.6 | 4-80 | ||
| JH-8×350 | 14 | 350 | 7.6 | 4-95 | ||
| JH-8×370 | 14.6 | 370 | 7.6 | 4-105 | ||
| JH-8×400 | 16 | 400 | 7.6 | 4-115 | ||
| JH-8×450 | 18 | 450 | 7.6 | 4-130 | ||
| JH-8×500 | 20 | 500 | 7.6 | 4-150 | ||
| JH-8×550 | 21.6 | 550 | 7.6 | 4-165 | ||
| JH-8×600 | 23.6 | 600 | 7.6 | 4-175 | ||
| JH-8×650 | 25.6 | 650 | 7.6 | 4-191 | ||
| JH-8×750 | 30 | 750 | 7.6 | 4-222 | ||
| JH-9×400 | 16 | 400 | 9 | 8-110 | 175 | 79 |
| JH-9×450 | 18 | 450 | 9 | 8-127 | ||
| JH-9×500 | 20 | 500 | 9 | 8-145 | ||
| JH-9×550 | 21.6 | 550 | 9 | 8-165 | ||
| JH-9×600 | 23.6 | 600 | 9 | 8-175 | ||
| JH-9×650 | 25.6 | 650 | 9 | 8-191 | ||
| JH-9×720 | 28.8 | 720 | 9 | 8-213 | ||
| JH-9×760 | 30.4 | 760 | 9 | 8-226 | ||
| JH-9×800 | 32 | 800 | 9 | 8-238 | ||
| JH-9×900 | 36 | 900 | 9 | 8-270 | ||
| JH-9×1020 | 40 | 1020 | 9 | 8-308 | ||
| JH-9×1220 | 48 | 1220 | 9 | 8-372 | ||
| JH-12×540 | 31.6 | 540 | 12 | 14-158 | 250 | 114 |
| JH-12×600 | 23.6 | 600 | 12 | 14-175 | ||
| JH-12×650 | 25.6 | 650 | 12 | 14-190 | ||
| JH-12×700 | 28 | 700 | 12 | 14-205 | ||
