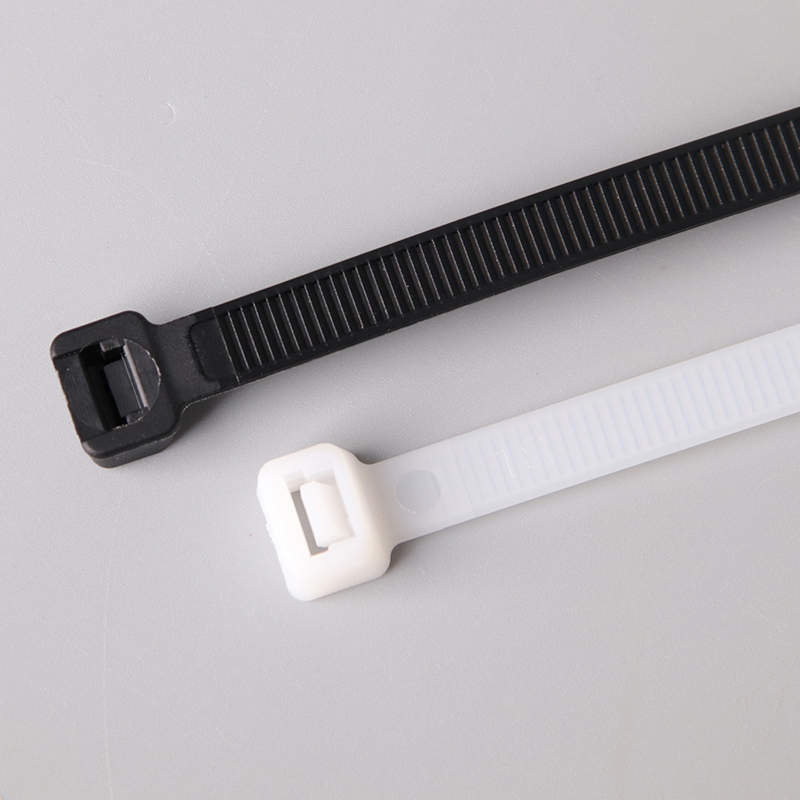

Self Locking Nylon Cable Tie-B

Self Locking Nylon Cable Tie-B

Product Center > Nylon Cable Ties

Overview

◆ Material：Nylon 66, 94V-2 certificated by UL. Acid & erosio ncontrol, insulate well and not easy to aging、tensile strong.

◆ Application temperature：-40℃ to 85℃.

◆ Installation temperature：-35℃ to 85℃.

◆ Color: Natural,Black,UV black and other colors are available as requested.

Natural cable ties preferred for indoor applications, while UV black is recommended for outdoor use.

Product Description

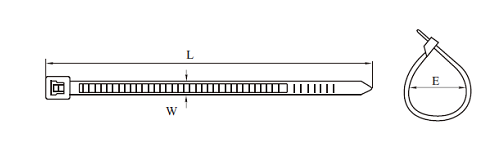

ITEM NO.	Length		Width	Bundle dia	Tensile strength
ITEM NO.	inch	mm	mm	mm	LBS	KGS
JH-1.9×100	4	100	1.9	2-22	13	6
JH-1.9×150	6	150	1.9	2-35
JH-2.2×200	8	200	2.2	2-50
JH-2.7×150	6	150	2.7	3-35	27	12
JH-2.7×200	8	200	2.7	3-50
JH-2.7×250	10	250	2.7	3-65
JH-2.7×300	12	300	2.7	3-80
JH-3.9×200	8	200	3.9	3-50	40	18
JH-3.9×250	10	250	3.9	3-65
JH-3.9×300	12	300	3.9	3-80
JH-3.9×350	14	350	3.9	3-95
JH-3.9×400	16	400	3.9	3-105
JH-3.9×450	18	450	3.9	3-130
JH-3.9×500	20	500	3.9	3-150
JH-4.2×250	10	250	4.2	4-65	50	22
JH-4.2×300	12	300	4.2	4-80
JH-4.2×350	14	350	4.2	4-95
JH-4.2×400	16	400	4.2	4-105
JH-5.2×200	8	200	5.2	3-50	63	28
JH-5.2×250	10	250	5.2	3-65
JH-5.2×300	12	300	5.2	3-80
JH-5.2×350	14	350	5.2	3-95
JH-5.2×400	16	400	5.2	3-105
JH-5.2×450	18	450	5.2	3-130
JH-5.2×500	20	500	5.2	3-150
JH-5.8×200	8	200	5.8	4-50
JH-5.8×250	10	250	5.8	4-65
JH-5.8×300	12	300	5.8	4-80
JH-5.8×350	14	350	5.8	4-95
JH-5.8×400	16	400	5.8	4-105
JH-5.8×450	18	450	5.8	4-130
JH-5.8×500	20	500	5.8	4-150
JH-7×200	8	200	7	4-50	86	38
JH-7×250	10	250	7	4-65
JH-7×300	12	300	7	4-80
JH-7×350	14	350	7	4-95
JH-7×400	16	400	7	4-105
JH-7×450	18	450	7	4-130
JH-7×500	20	500	7	4-150
