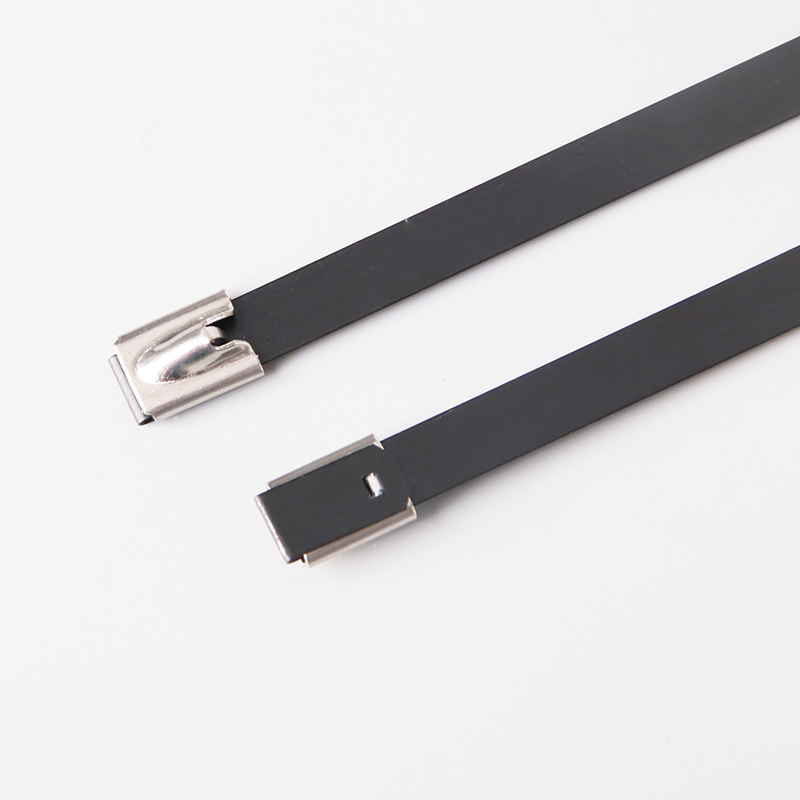

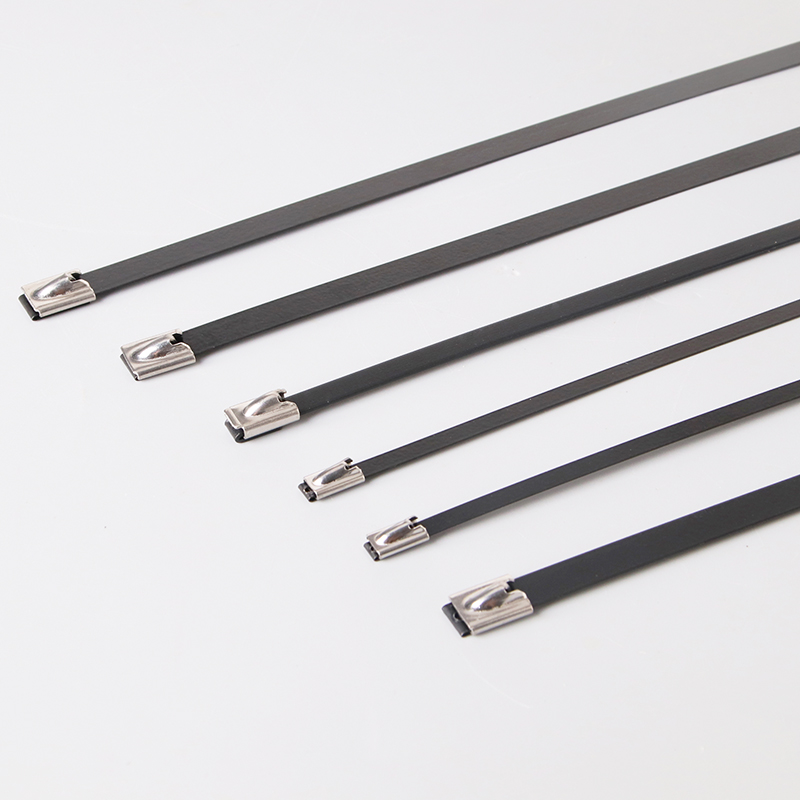

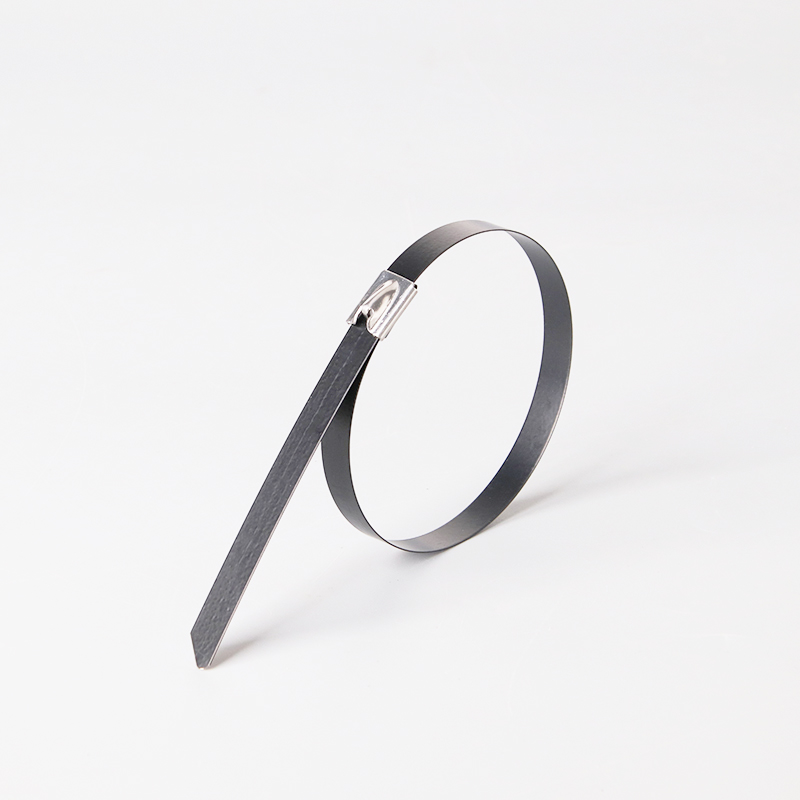

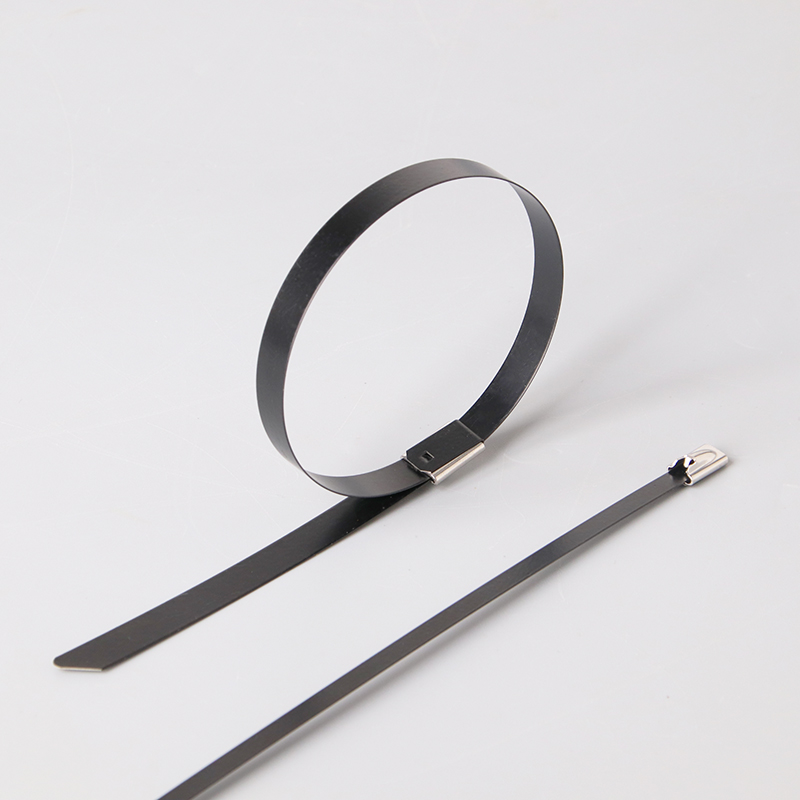

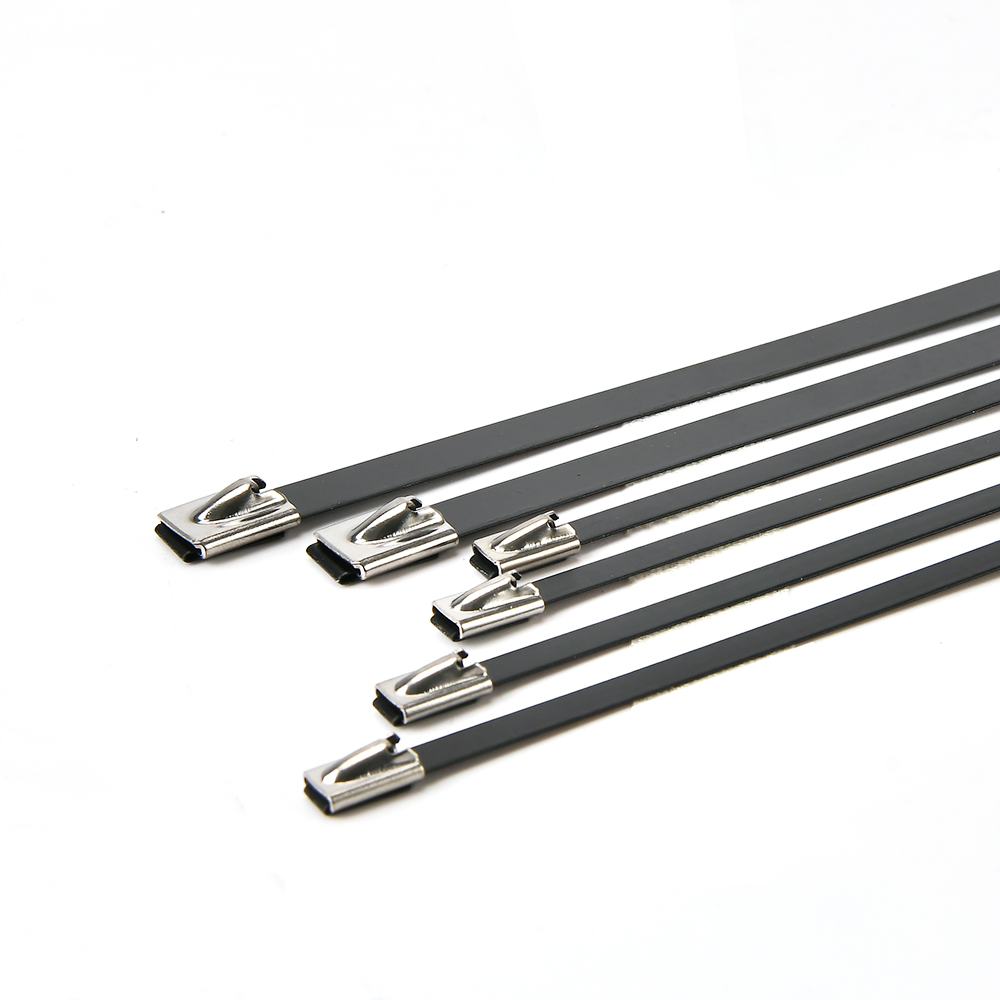

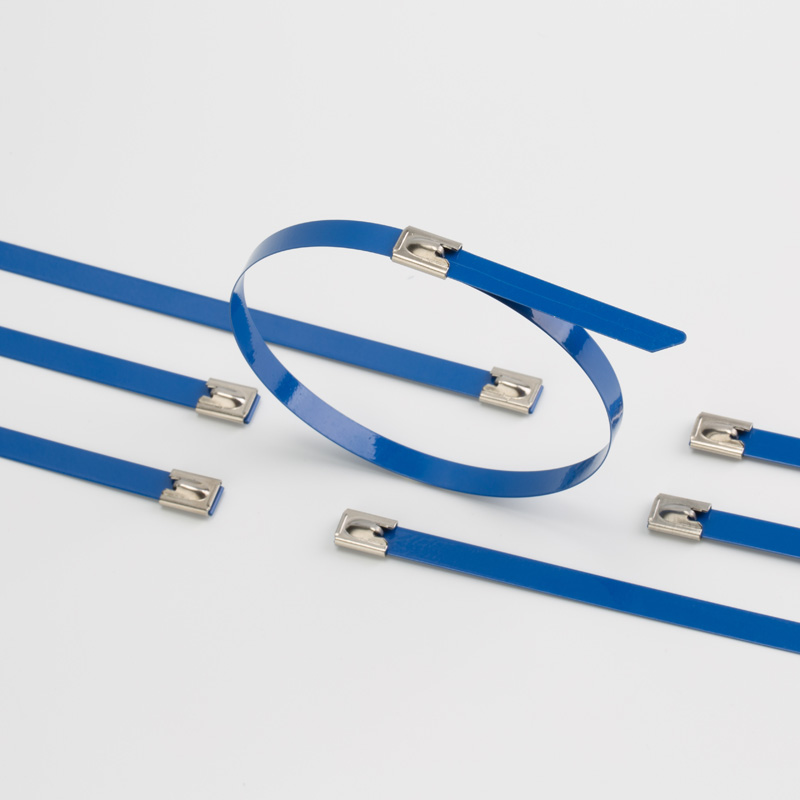

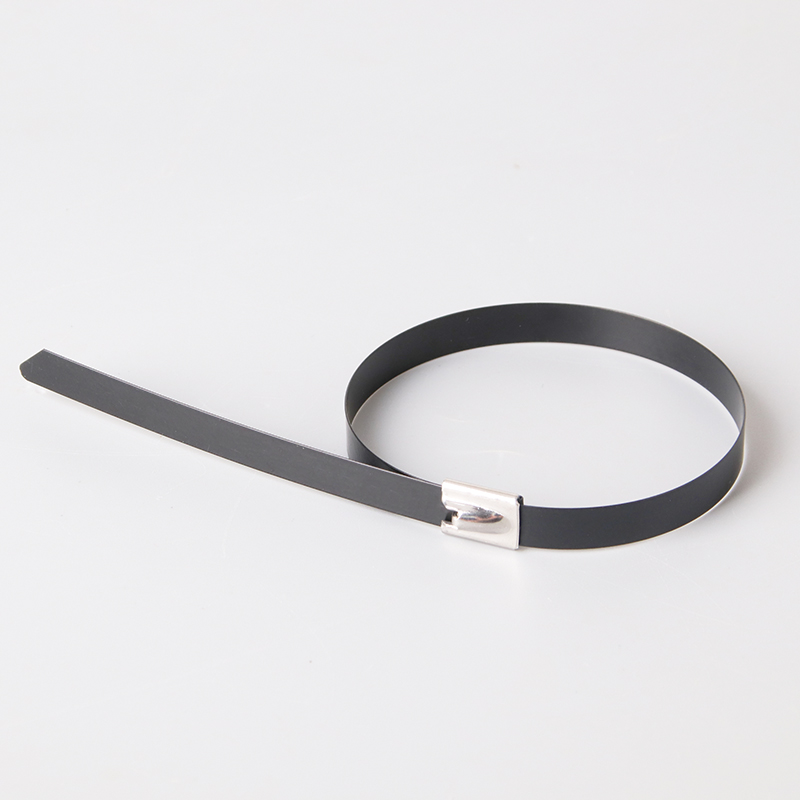

STAINLESS STEEL EPOXY COATED CABLE TIE

◆Material: Stainless steel type: 201,304,316, thermosetting epoxy or nylon11 resin coated, all length are avaliable, special sizes can be customized;

◆Characteristic: Acid-resisting, anti-corrosion, uninflammable, high tensile strength；Unique locking structure(with a small ball) makes it simple and easy to use and can't be unlock.

◆Application temperature:-40℃ to 110℃

◆Environment:Indoor/Outdoor

◆Resistance Properties:UV-Resistant,Weather-Resistant
Spray coated stainless steel cable ties are widely used in industries such as shipbuilding, marine engineering, and petrochemicals due to their strong corrosion resistance. They are used to tie cables and pipelines.

ITEM NO.	Width	Length	Thickness	Max bundle dia	Tensile strength
ITEM NO.	mm	mm	mm	mm	LBS	KGS
JHCP-3.5×150	3.5	150	0.4	32	135	60
JHCP-3.5×200		200	0.4	48
JHCP-3.5×250		250	0.4	64
JHCP-3.5×300		300	0.4	80
JHCP-3.5×350		350	0.4	95
JHCP-3.5×400		400	0.4	112
JHCP-3.5×500		500	0.4	143
JHCP-4.6×100	4.6	100	0.4	25	180	80
JHCP-4.6×150		150	0.4	32
JHCP-4.6×200		200	0.4	48
JHCP-4.6×250		250	0.4	64
JHCP-4.6×300		300	0.4	80
JHCP-4.6×360		360	0.4	95
JHCP-4.6×400		400	0.4	112
JHCP-4.6×450		450	0.4	127
JHCP-4.6×520		520	0.4	150
JHCP-4.6×680		680	0.4	200
JHCP-7.9×150	7.9	150	0.4	32	270	120
JHCP-7.9×200		200	0.4	48
JHCP-7.9×250		250	0.4	64
JHCP-7.9×300		300	0.4	80
JHCP-7.9×360		360	0.4	95
JHCP-7.9×400		400	0.4	112
JHCP-7.9×450		450	0.4	127
JHCP-7.9×520		520	0.4	150
JHCP-7.9×550		550	0.4	160
JHCP-7.9×680		680	0.4	200
JHCP-12×200	12	200	0.4	48	330	150
JHCP-12×250		250	0.4	64
JHCP-12×300		300	0.4	80
JHCP-12×360		360	0.4	95
JHCP-12×400		400	0.4	112
JHCP-12×520		520	0.4	150
JHCP-12×550		550	0.4	160
JHCP-12×680		680	0.4	200
All length are available
