Coated Cable Tie

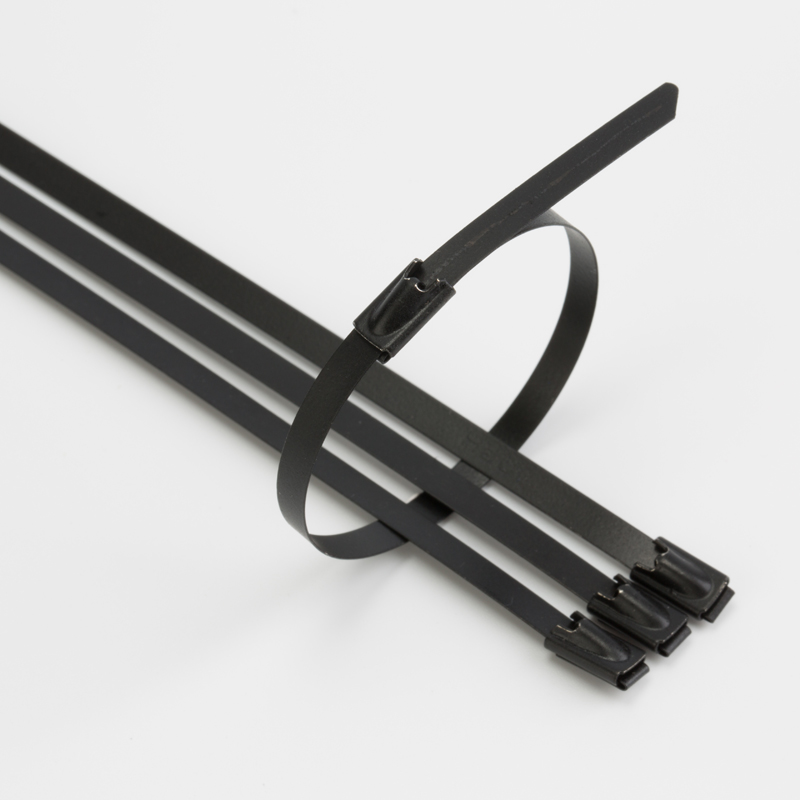

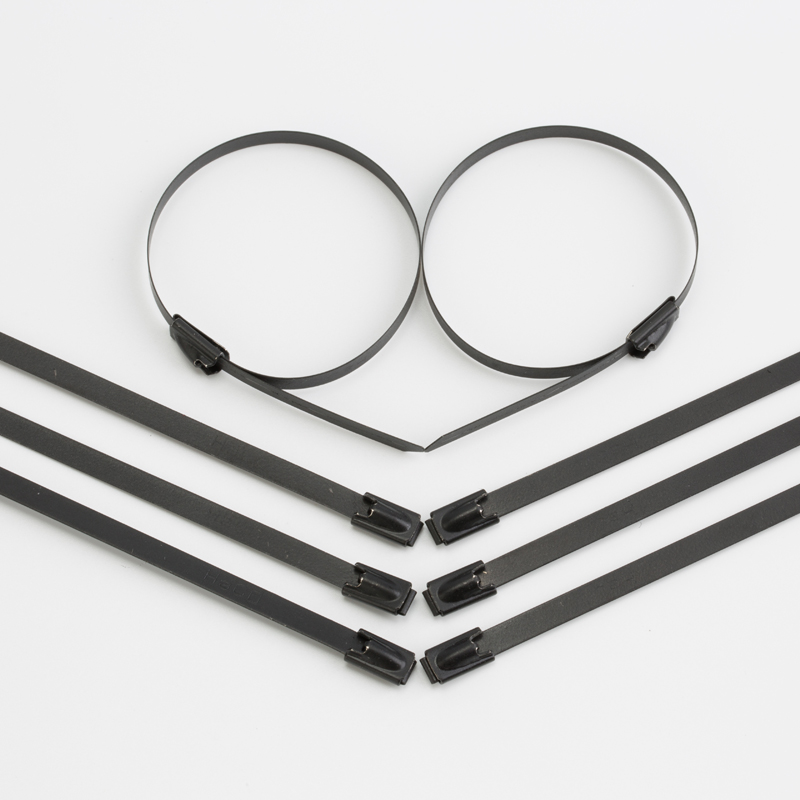

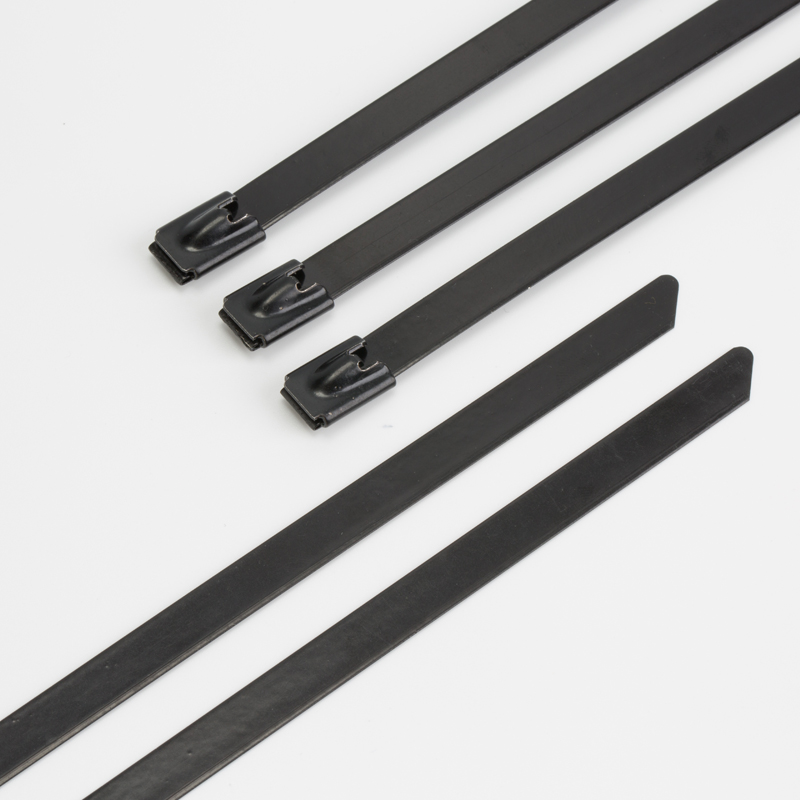

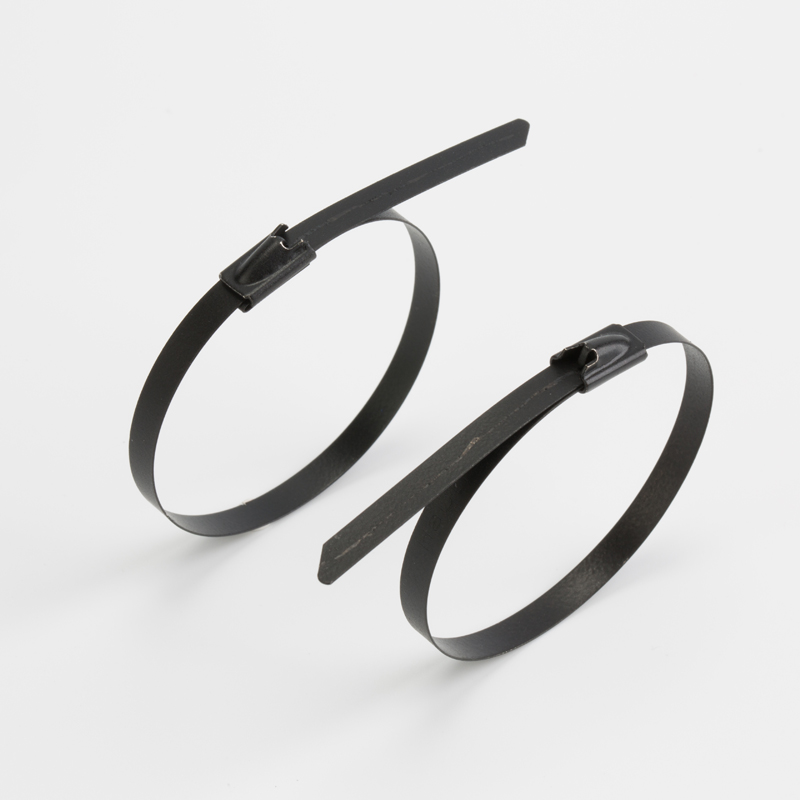

Full Coated Stainless Steel Cable Tie

◆Material: Stainless steel 304,316, epoxy or nylon11 coated, all length are avaliable, special sizes can be customized;

◆Characteristic: Acid-resisting, anti-corrosion, uninflammable, high tensile strength；Unique locking structure(with a small ball) makes it simple and easy to use and can't be unlock.

◆Application temperature:-40℃ to 110℃

ITEM NO.	Width	Length	Thickness	Max bundle dia	Tensile strength
ITEM NO.	mm	mm	mm	mm	LBS	KGS
JHCPQ-3.5×150	3.5	150	0.4	32	135	60
JHCPQ-3.5×200		200	0.4	48
JHCPQ-3.5×250		250	0.4	64
JHCPQ-3.5×300		300	0.4	80
JHCPQ-3.5×350		350	0.4	95
JHCPQ-3.5×400		400	0.4	112
JHCPQ-3.5×500		500	0.4	143
JHCPQ-4.6×100	4.6	100	0.4	25	180	80
JHCPQ-4.6×150		150	0.4	32
JHCPQ-4.6×200		200	0.4	48
JHCPQ-4.6×250		250	0.4	64
JHCPQ-4.6×300		300	0.4	80
JHCPQ-4.6×360		360	0.4	95
JHCPQ-4.6×400		400	0.4	112
JHCPQ-4.6×450		450	0.4	127
JHCPQ-4.6×520		520	0.4	150
JHCPQ-4.6×680		680	0.4	200
JHCPQ-7.9×150	7.9	150	0.4	32	270	120
JHCPQ-7.9×200		200	0.4	48
JHCPQ-7.9×250		250	0.4	64
JHCPQ-7.9×300		300	0.4	80
JHCPQ-7.9×360		360	0.4	95
JHCPQ-7.9×400		400	0.4	112
JHCPQ-7.9×450		450	0.4	127
JHCPQ-7.9×520		520	0.4	150
JHCPQ-7.9×550		550	0.4	160
JHCPQ-7.9×680		680	0.4	200
JHCPQ-12×200	12	200	0.4	48	330	150
JHCPQ-12×250		250	0.4	64
JHCPQ-12×300		300	0.4	80
JHCPQ-12×360		360	0.4	95
JHCPQ-12×400		400	0.4	112
JHCPQ-12×520		520	0.4	150
JHCPQ-12×550		550	0.4	160
JHCPQ-12×680		680	0.4	200
All length are available

Full Coated Cable Tie-ball Lock
