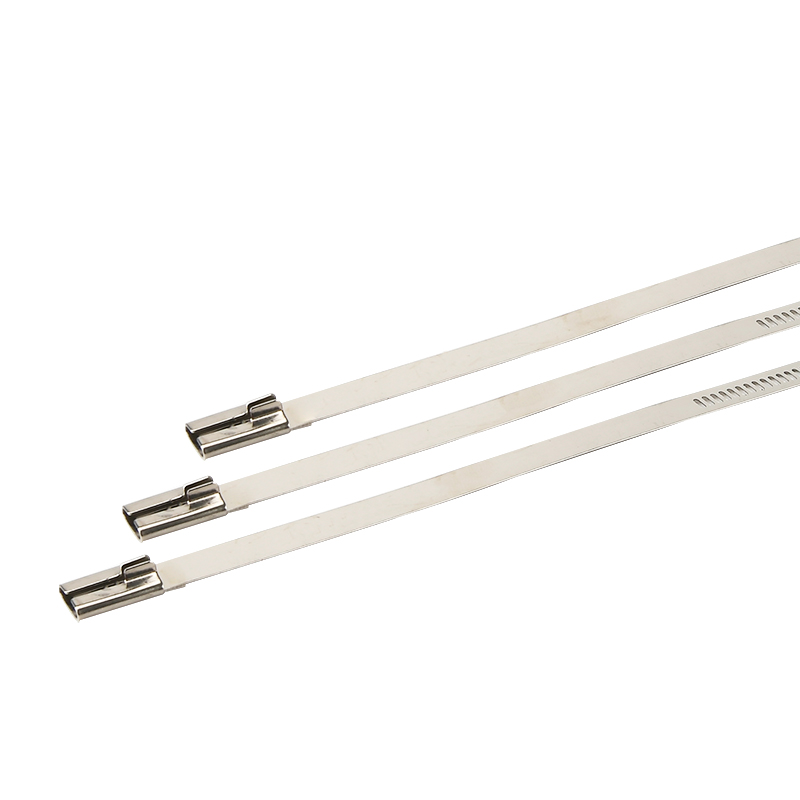

Ladder Cable Tie-Multi Lock Type

Ladder Cable Tie-Multi Lock Type

Product Center > Stainless Steel Cable Tie

Overview

Unique multi-locking mechanism design on the ladder strip can be applied without crimping tools.

Self-locking for fast, easy application.

Exended ladder slot provides larger bundle diameter with the same length of tie Large round slot at the tail-end allows application of hook-type tools.

Uncoated tie for high temperature applications.

Material:Stainless steel 304 & 316.

Working temperature:-80℃-538℃

Contact Us

ADD: 555 Liule road ,Liushi Town,Yueqing City,Zhejiang Province China
TEL：86-0577-61785337
FAX：86-0577-61761160
Back Inquiry
Product Description
ITEM NO. Width Length Thickness Max bundle dia Tensile strength
mm mm mm mm LBS KGS
JHJS-7×150 7 150 0.25 33 180 80
JHJS-7×225 7 225 0.25 57 180 80
JHJS-7×300 7 300 0.25 81 180 80
JHJS-7×350 7 350 0.25 100 180 80
JHJS-7×400 7 400 0.25 113 180 80
JHJS-7×450 7 450 0.25 129 180 80
JHJS-7×490 7 490 0.25 141 180 80
JHJS-7×550 7 550 0.25 161 180 80
JHJS-12×150 12 150 0.25 33 225 100
JHJS-12×225 12 225 0.25 57 225 100
JHJS-12×300 12 300 0.25 81 225 100
JHJS-12×350 12 350 0.25 100 225 100
JHJS-12×400 12 400 0.25 113 225 100
JHJS-12×450 12 450 0.25 129 225 100
JHJS-12×490 12 490 0.25 141 225 100
JHJS-12×550 12 550 0.25 161 225 100
All length are available
