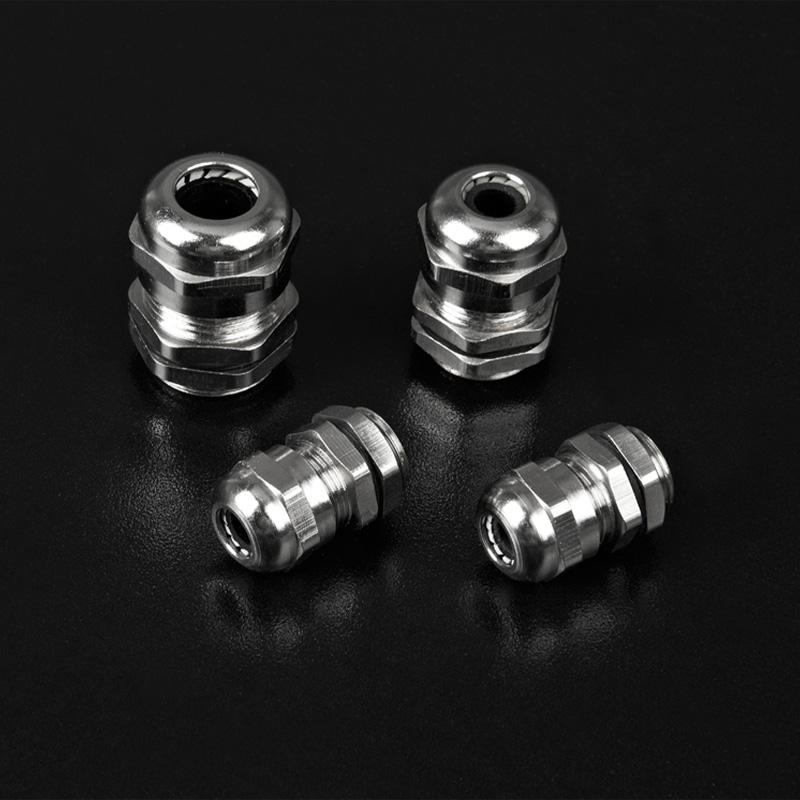

Material:the outer metal is nickel plated with brass,the inner core is nylon 66,and the sealing material is nbr.
Protection level:within the specified buckle range,the protection level can reach IP68.
Performance:certified by Rohs.
Temperature range:-40℃ to 100℃，a short time can reach 120℃。
| ITEM.NO | Cable range | Thread O.D | Thread length | Spanner size |
| mm | mm | mm | mm | |
| PG7 | 3-6.5 | 12.5 | 6 | 14 |
| PG9 | 4-8 | 15.2 | 6 | 17 |
| PG11 | 5-10 | 18.6 | 6 | 20 |
| PG13.5 | 6-12 | 20.4 | 7 | 22 |
| PG16 | 8-14 | 22.5 | 7 | 24 |
| PG21 | 13-18 | 28.3 | 7 | 30 |
| PG29 | 18-25 | 37 | 8 | 40 |
| PG36 | 22-32 | 47 | 9 | 50 |
| PG42 | 30-38 | 54 | 9 | 60 |
| PG48 | 37-44 | 59.3 | 10 | 65 |
| PG63 | 42-50 | 70.8 | 10 | 78 |
