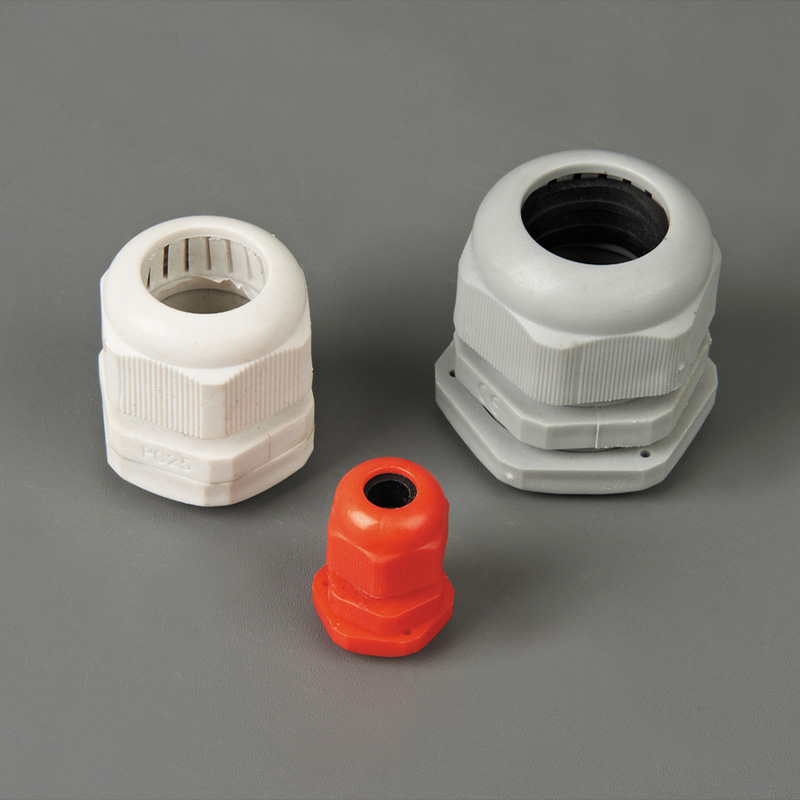

Features special clamping claws and rubber parts design,clamping cable range,clamping cable range,strong tensile resistance,waterproof,dust-proof,salt,acid,alkali,alcohol,grease and general solvents.
Color,black,gray(RAL9005)(RAL7035),silver(RAL7001),color isavaliable.
Product material:A.C.F parts adopt UL approved nylon PA66,and B.E part adopts nbr.
Working temperature:static -40℃ to +100℃
| ITEM.NO | Cable range | Thread O.D | Thread length | Spanner size A/E |
| mm | mm | mm | mm | |
| PG7 | 3-6.5 | 12.5 | 8 | 18/16 |
| PG9 | 4-8 | 15.2 | 8 | 22/19 |
| PG11 | 5-10 | 18.6 | 8 | 24/22 |
| PG13.5 | 6-11 | 20.4 | 9 | 27/24 |
| PG16 | 10-13 | 22.5 | 10 | 30/27 |
| PG19 | 12-15 | 24 | 10 | 30/28 |
| PG21 | 13-18 | 28.3 | 10 | 35/33 |
| PG25 | 16-21 | 30 | 12 | 37/35 |
| PG29 | 18-25 | 37 | 15 | 45/42 |
| PG36 | 22-32 | 47 | 15 | 58/52 |
| PG42 | 32-38 | 54 | 15 | 62/58 |
| PG48 | 37-44 | 59.3 | 15 | 70/64 |
| PG63 | 42-50 | 71 | 30 | 83/77 |
